Serial Number: Cam0156
Type:
Folding Bed Camera
Manufacturer:
Eastman Kodak Co.
Country of Origin:
New York, USA
Production Period:
1922 - 1931
Approximate Price:
US Dollars 25.00
Reference:
camerapedia.wikia.com
Status: Display
Description:

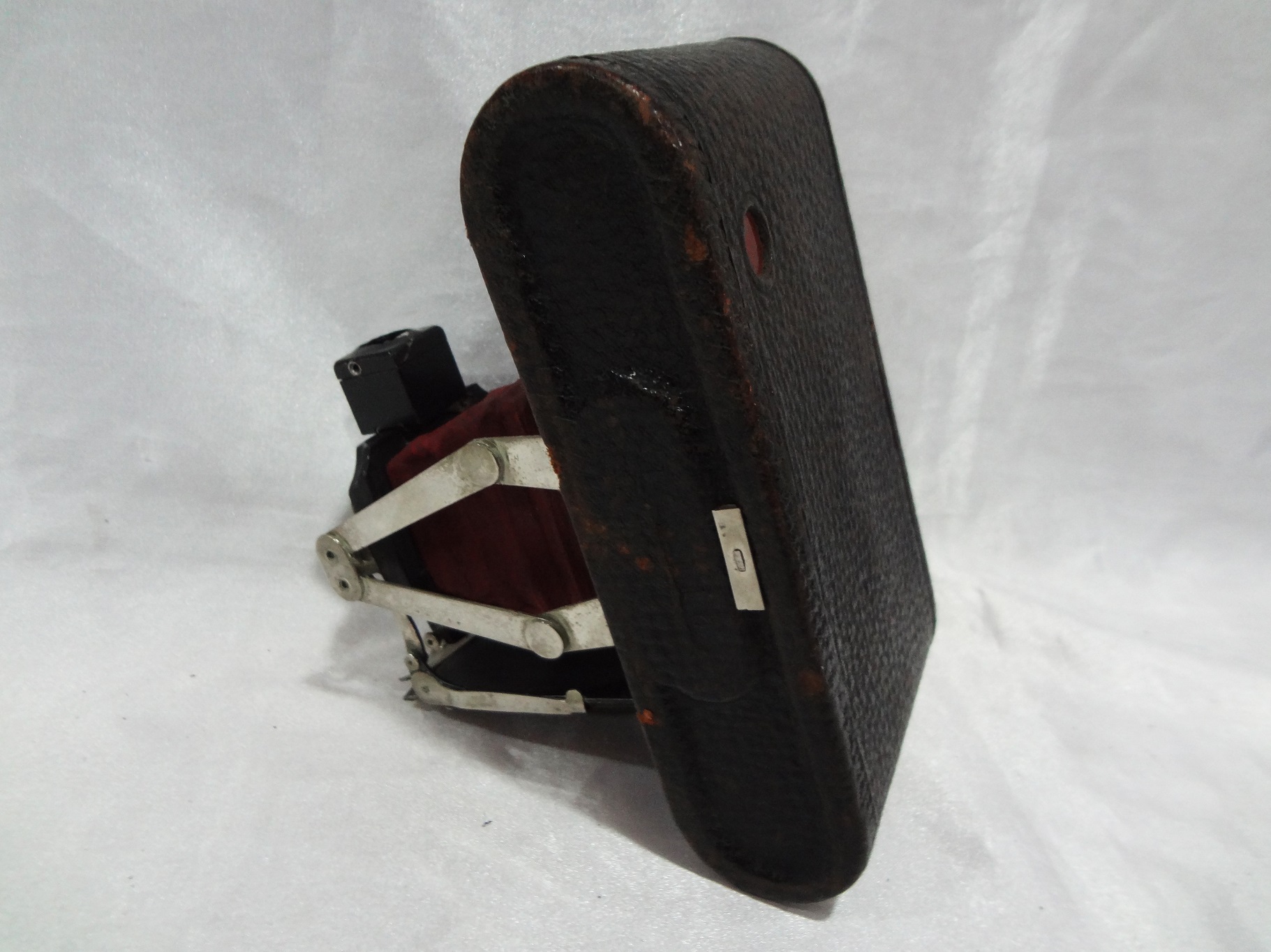

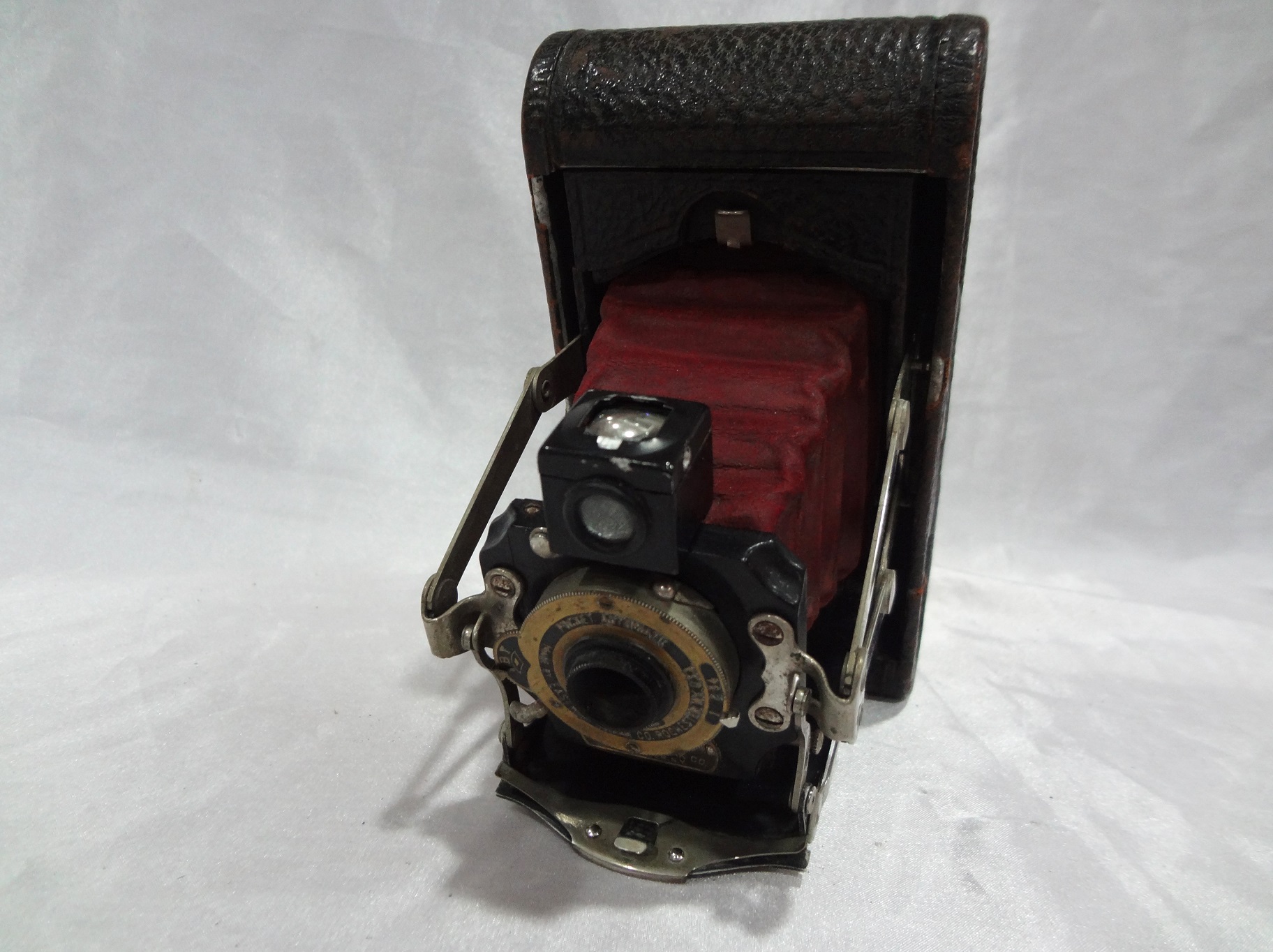

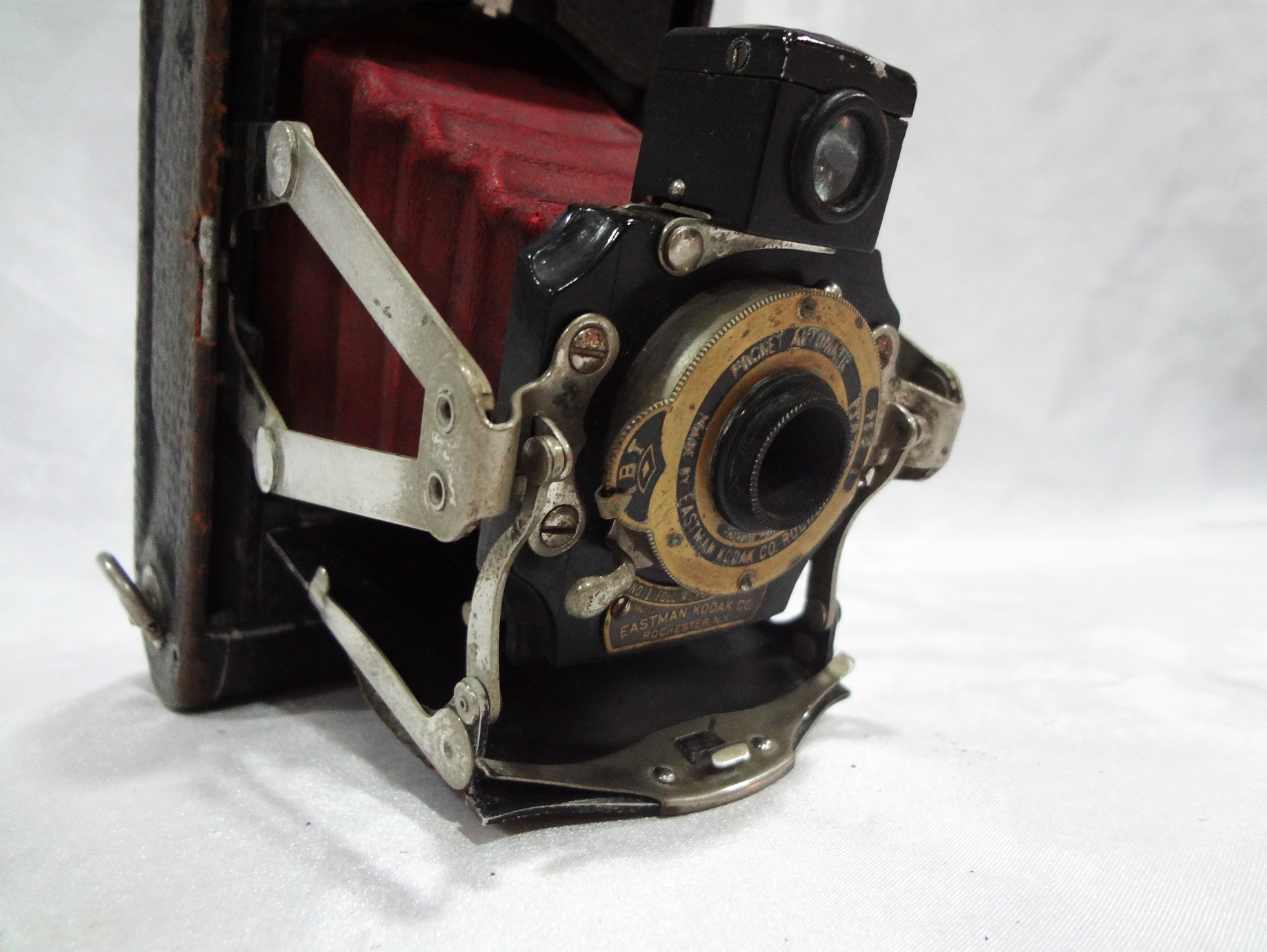

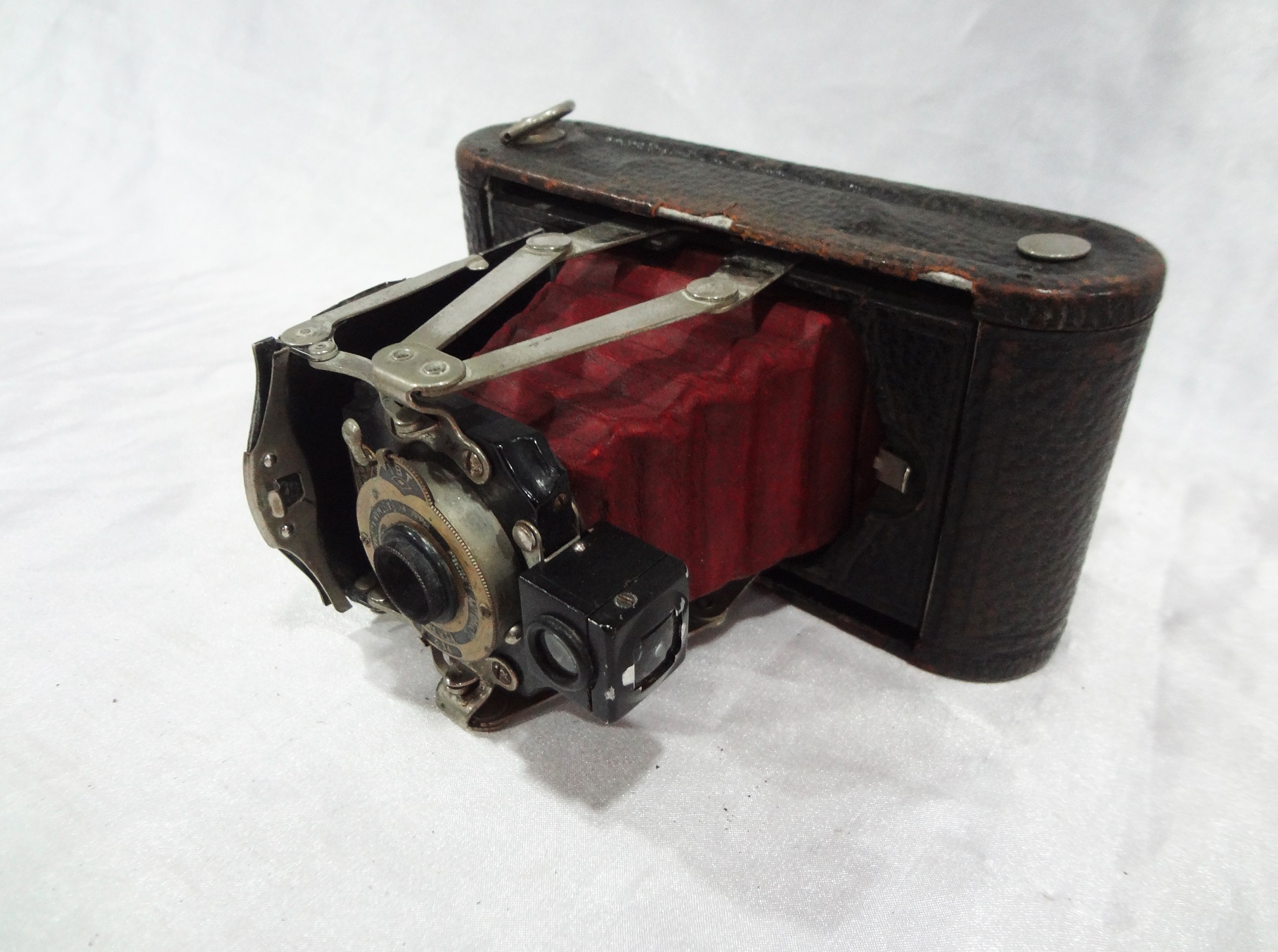

The pocket Kodak No. 1 series II is a folding A120 film camera made from 1922 to 1931 (according to McKeown). It uses autographic rollfilm that was produced by Eastman Kodak between 1914 and 1934. All Pocket Kodak cameras had the autographic feature. The negative size is 6×9 cm or 2 1 4×3 1 4 inch. It has a Kodak anastigmat 108 7,7 lens. That s not a fast lens. The Diomatic No. 0 shutter has six settings, B, T 1 10 1 50 1 100 and 1 200s. That s not bad at all. It even has an exposure advice. Select aperture and lighting conditions dull, gray, clear or brilliant. At the shown aperture figures indicate required exposure as it states on the lever. Later models, like the Kodak autographic 2c, even have a rangefinder coupled to the lens plate to help focusing the camera instead of guessing the distance. The camera was designed to use A120 film. To benefit from this autographic feature, a stylus with an Art Deco look was included (just above the window). Very often the stylus is lost on cameras you find at photographica fairs. On the back of the camera, you find the obvious red windows used for framecounting. On this camera, a little advice was imprinted in the black leather use film No A120. Nowadays, all you can use is simple 120 film. Some version also came with use file No A116
